Detects high temperatures in the exhaust pipe when not enough seawater flows
Provides acoustic and visual warning of high temperatures before the engine itself does
Increasing safety
Detects high temperature in the exhaust pipe when not enough seawater flows
Provides acoustic and visual warning of high temperature before the engine itself does
Increasing safety
Programmable temperature to adapt to all types of engines

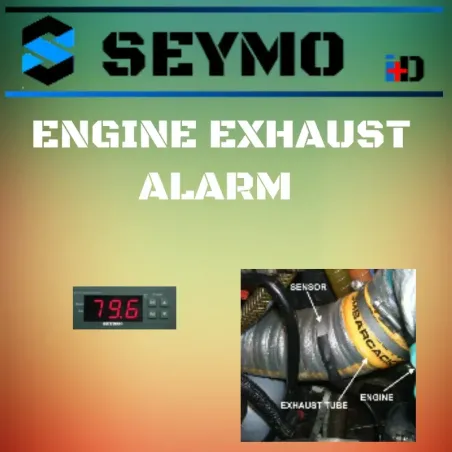

Installed on the exhaust pipe with the clamp and its built-in sensor
Advantages of this equipment over those on the market:
Easy assembly without removing any part of the exhaust, open the clamp and place it around the pipe or elbow and that's it.
Programmable adapts to any engine
Test operation without having to overheat the engine
The sensor is not in contact with water and smoke
Price
Set the maximum exhaust temperature to adjust the overheating alarm. Simply observe
The highest temperature your exhaust reaches during normal navigation, and then set the alarm
So that it sounds above this
Programming the maximum alarm temperature, when this is exceeded, it will warn acoustically and visually, thus avoiding damage to the engine
Lack of seawater flow (Boats)
High temperature in the engine
Connections:
12V or 24V power supply
Connection to elbow or exhaust pipe
12v or 24v power supply optional
Alarm temperature programmable from 0 to 115 degrees
Continuous digital temperature monitoring
Resolution 0.1 degree
Acoustic alarm exceeding programmed temperature
Visual alarm with LED on the display
Optional external buzzer
Optional external siren
Mounting: recessed and surface
Dimensions x P x H = 74x70x34mm
Temperature sensor with clamp and 2.5 meters of cable (you can add up to 100 meters of cable extension of 2x0.75mm minimum diameter
continuous 316 stainless steel clamp from 30 to 310mm
Note: select the working voltage 12 or 24 Volts from the top menu
Example: from 30 to 310 mm, this closes up to 30mm and its maximum diameter 310mm
If you do not know the diameter of the tube, you can measure the circumference around the tube in mm and divide by 3.142
Example: for a circumference of 500 mm
500mm: 3.142 = 159.1mm, it would be within the range between 30 and 310mm
Complete alarm for your installation:
CPU display with internal buzzer
Sensor
2.5 meter wiring (extendable up to 100 meters with cable 2x0.75mm)
Installation manual
