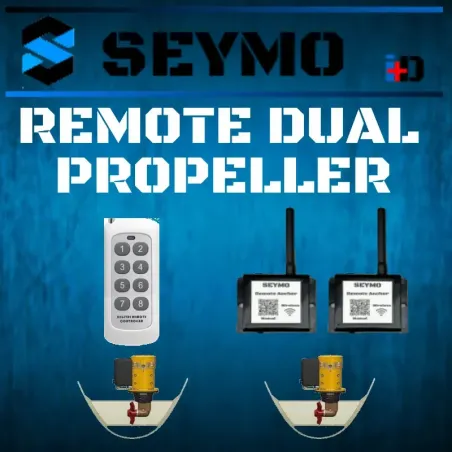

Remote control for bow and stern thrusters

Name: Remote control for bow and stern thrusters
Brand: Seymo
SKU: MH 300
Price: 292.35 EUR
Availability: InStock

€292.35

VAT included

Wireless remote control for all types of bow and stern thrusters 12 or 24 Volts depending on the selection

Voltage: 24 V

12 V
24 V

Number of transmitter controls: 1

Quantity

Description
Product Details

Seymo MH 300

Control of bow and stern thrusters simultaneously from a single control

Wireless remote control for all types of 12 or 24 Volt bow and stern thrusters.

Features:

High level of security, up to 10 million different codes.

Standby current: < 5 mAh.

Working temperature: -30 to + 80º.

Reception sensitivity: >97dBm.

Operating voltage: 12V or 24V.

5-wire connection for each control box.

Range > 100 meters.

Dimensions:

Control boxes 54x73x28 mm

Control: 100x45x15mm

Installation:

It is supplied with two independent control boxes, one to install in the bow and one in the stern, for easy installation you do not need to pass cables from bow to stern.

positive cable

negative cable

common cable

port control cable

starboard control cable

Operation:

It consists of 8 buttons 1 and 2 bow thruster 3 and 4 stern thruster

5 and 6 go to starboard or port perpendicularly using the two propellers.

7 and 8 Bow thruster swerve to starboard or port in conjunction with port or starboard stern thruster

includes:

Bow thruster control box with antenna

Stern thruster control box with antenna

1 or 2 controls according to the selection

PDF installation manual

Documentation:

weppMANUAL_4 (1).webp

Brand Seymo

Reference MH 300

Comments (0)

Preguntas frecuentes

Esta completo para instalar o falta algo ?
Elequipo viene completo para instalar no necesita nada mas
Que garantia tiene ?
La garantia es de dos años
Pueden reparar si despues de la garantia se averia ?
Si disponemos de servicio tecnico y con una tarifa plana de 60 Euros reparamos todos nuestros productos y renovamos la grarntia por dos años mas.
Que incluye la garantia ?
La garnatia incluye la reparacion o sustitución del equipo, no incluye sondas y envios
necesito un tecnico par instalar?
La instalacion es muy sencilla en el manual pdf viene explicado muy bien

y si hay alguna duda la resolvemos-.
What are the benefits of this product?
Easy connection, always available, no pairing required; battery lasts over 2 years; repairs are guaranteed during and after the warranty period for a flat fee of 60 Euros.
